CABLE:

• H07RN-F 1.0 mm2, or H05 RN-F 0.75 mm2

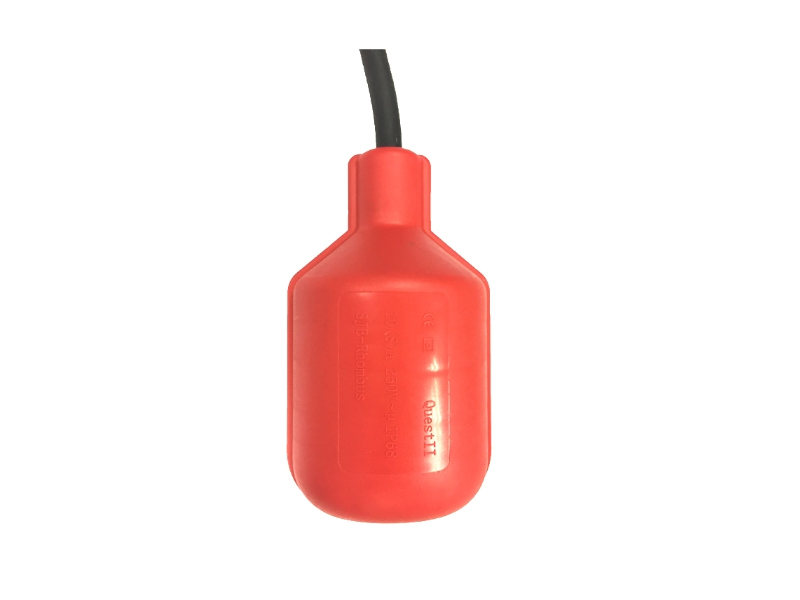

FLOAT:

• 2.74 inches diameter x 4.83 inches long (7.0 cm x 12.3 cm) high impact, corrosion resistance, polypropylene housing for use in water up to 122℉ (50℃), in red, blue, or black colors

MAXIMUM WATER DEPTH:

• 33 feet (10 meters) or 13 PSI (90 kPa)

PUMPING RANGE:

• 9 - 36 inches (23 - 91 cm)

ELECTRICAL:

• 10(8)A or 6(4)A, 250 VAC

CERTIFICATE:

• CE, TUV

OPTIONS:

• For NC (pump up), NO (pump down), or SPDT (pump up or down) applications

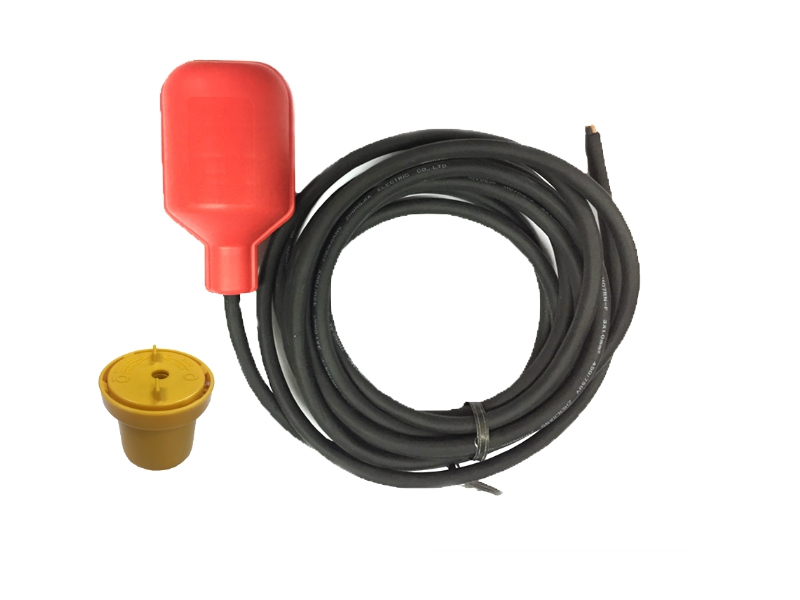

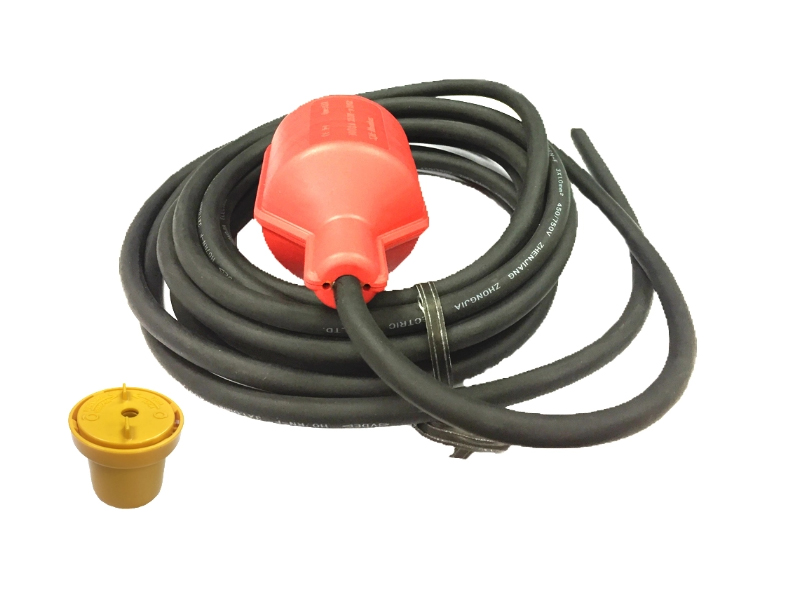

• With adjustable mounting clamp for applications where the float can be attached to a discharge pipe or similar mounting device, or cable weight for applications where the float can be suspended from above

• In standard cable lengths of 3, 5 and 10 meters, customize length available

WARRANTY:

• Two-Year Limited Warranty

NOTE: This switch is not recommended for controlling electrical loads less than 100 milliamps, 12 VAC or non-arcing electrical loads. This switch must be used with pumps that provide integral thermal overload protection
