CABLE:

• SJOW, SJTOW

SWITCH AND FLOAT HOUSING:

• High impact, corrosion resistant, PVC housing for use in sewage and non-potable water up to 125°F (52°C)

• Overall dimensions: 12 inches high x 5 inches x 3 inches wide (30.5 cm x 12.7 cm x 7.6 cm)

• Switch Housing: 2 inches high x 2.8 inches wide (5 cm x 7.1 cm), has IPX7 protection

• Float Housing: 2.5 inches high x 2.7 inches wide (6.4 cm x 6.9 cm)

LIFT ROD:

• Acetal

FLOAT STOP GROMMET:

• Neoprene

PUMPING RANGE:

• 0.75 to 6.5 inches (2 cm to 17 cm)

Electrical:

• 120/230 VAC 50/60 Hz Single Phase

o Maximum Pump Running Current: 10 amps

o Maximum Pump Starting Current: 60 amps

CERTIFICATE:

• UL Recognized, CSA Certified

OPTIONS:

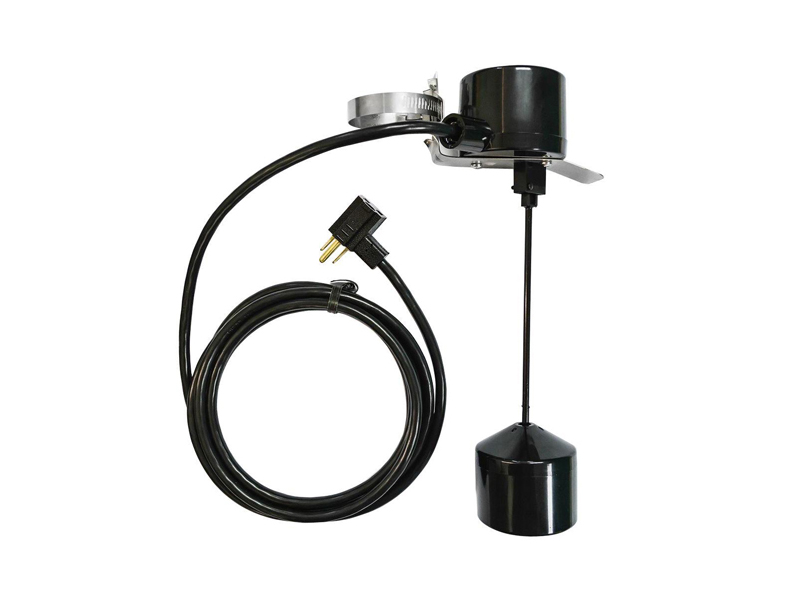

• With a 120 VAC or 230 VAC piggy-back plug

• Without a plug for direct wiring in 120 VAC or 230 VAC applications

• In standard cable lengths of 3, 5 and 10 meters, customize length available

NOTE: This switch is not recommended for controlling electrical loads less than 100 milliamps, 12 VAC or non-arcing electrical loads. This switch must be used with pumps that provide integral thermal overload protection.
