Mechanically-activated, snap action contacts
Low current, non-arcing applications down to 1 mA at 125 VAC
High impact, corrosion resistant, polypropylene float housing

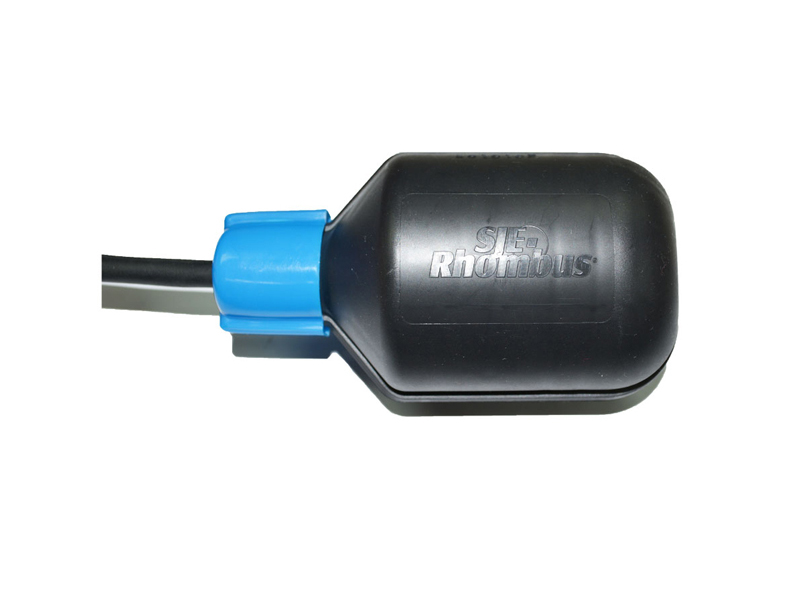

Blue colored cap for easy identification
Mechanically-activated, snap action contacts
Low current, non-arcing applications down to 1 mA at 125 VAC
High impact, corrosion resistant, polypropylene float housing
Blue colored cap for easy identification

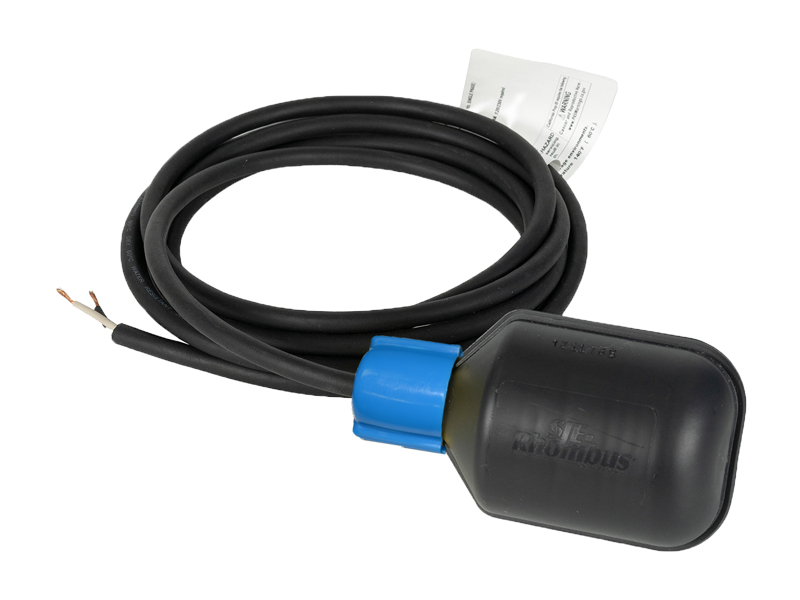

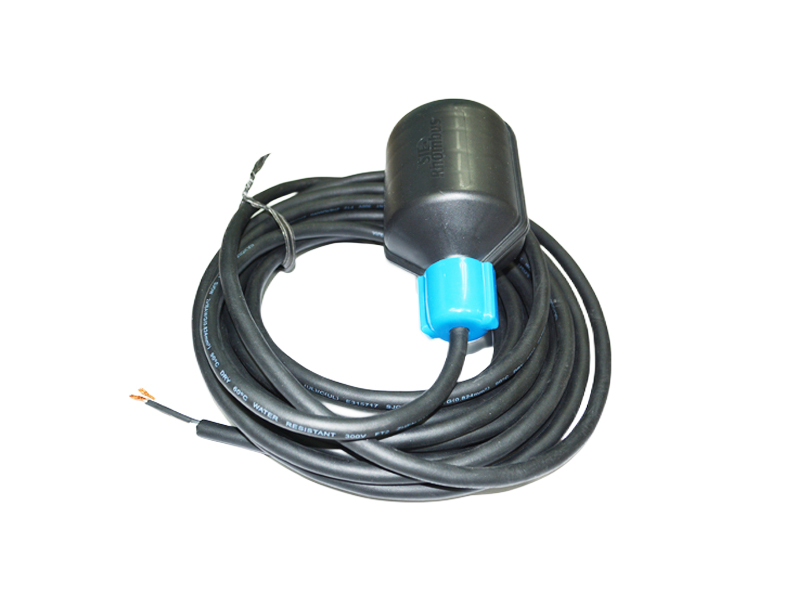

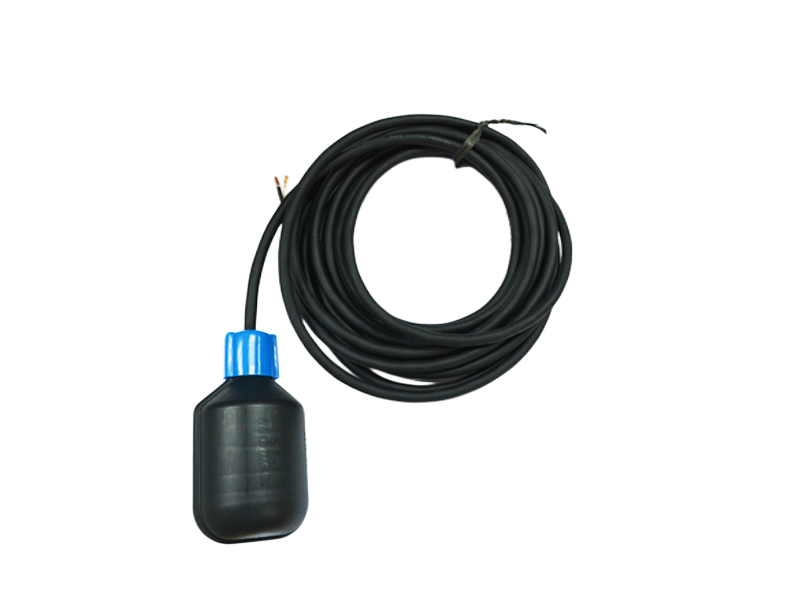

The SJE MilliAmpMaster™ control switch is narrow-angle or wide-angle control switch that offers control for AC or DC applications in wastewater and sewage. The internal switching mechanism has seal gold cross-point contacts for reliable low current operation. It features a blue colored cap for easy identification.
Common applications include PLC (programmable logic controller) panels, IS panels with intrinsically safe barriers, low current solar applications and other low current control panels and alarm applications.
The wide-angle version activates/deactivates at approximately 4 inches above and below horizontal with a 3.5-inch tether. The narrow-angle version activates/deactivates at approximately 1.5 inches above or below horizontal with a 3.5-inch tether.
This switch is not sensitive to rotation.
Normally Open Models (high level): The control switch turns on (closes) when the float tips slightly above horizontal signaling a high level and turns off (opens) when the float drops slightly below horizontal.
Normally Closed Models (low level): The control switch turns on (closes) when the float tips slightly below horizontal signaling a low level and turns off (opens) when the float tips slightly above horizontal.
UL、CSA
CABLE:
• SJOW, water-resistant (CPE)
FLOAT:
• 2.74 inches diameter x 4.83 inches long (7.0 x 12.3 cm) high impact, corrosion resistance, polypropylene housing for use in sewage and water up to 140°F (60°C)
CONTROL ACCURACY:
• Control differential of 1.5 inches (4 cm) above or below horizontal with narrow-angle or 4 inches (10 cm) above or below horizontal with wide-angle
MAXIMUM WATER DEPTH:
• 30 feet (9 meters), 13 PSI (90 kPa)
ELECTRICAL:
• 125 VAC:
o Maximum Electrical Load: 1 amp
o Minimum Electrical Load: 1 milliamps
• 30 VDC:
o Maximum Electrical Load: 0.1 amps
o Minimum Electrical Load: 1 milliamps
• 4 VDC:
o Minimum Electrical Load: 1 milliamps
CERTIFICATE:
• UL listed, CSA Certified
OPTIONS
• For NC (low level), NO (high level), or SPDT (high or low level)
• With narrow-angle or wide-angle pumping ranges
• With adjustable mounting clamp for applications where the float can be attached to a discharge pipe or similar mounting device, or cable weight for applications where the float can be suspended from above
• In standard cable lengths of 3, 5 and 10 meters, customize length available
