Mechanically-activated, narrow-angle, snap action contacts
High impact, corrosion resistant, polypropylene float housing

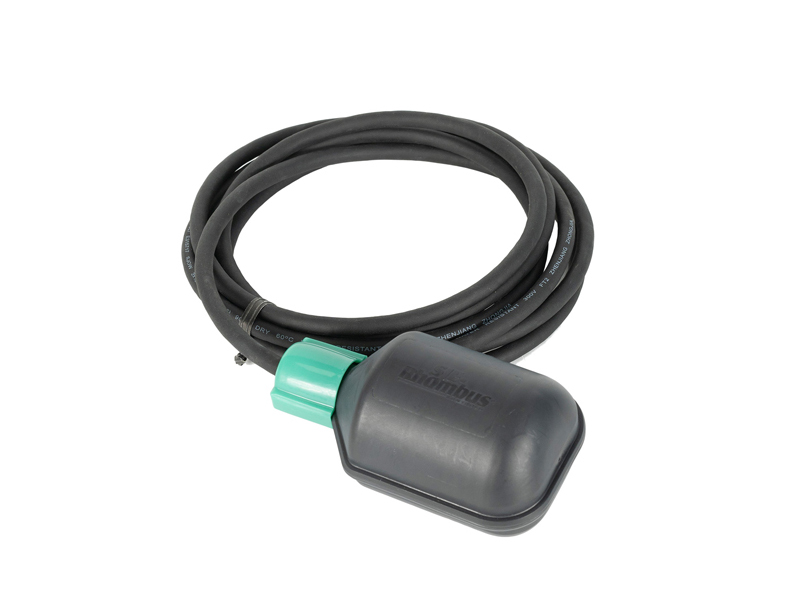

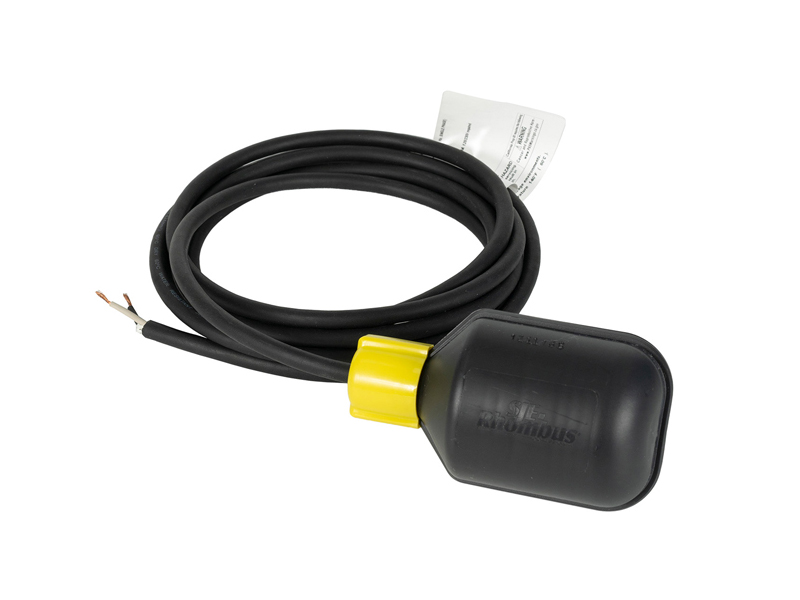

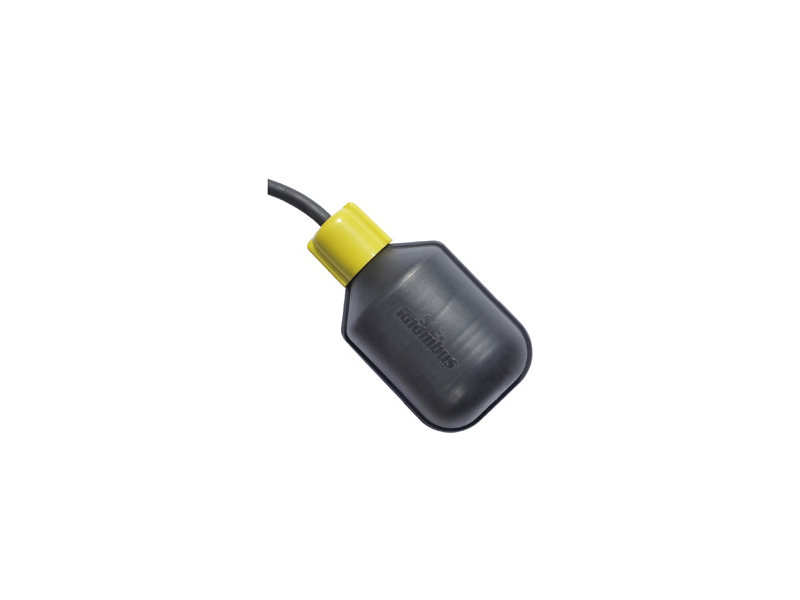

Yellow colored cap for NO, white colored cap for NC, green colored cap for SPDT
Mechanically-activated, narrow-angle, snap action contacts
High impact, corrosion resistant, polypropylene float housing
Yellow colored cap for NO, white colored cap for NC, green colored cap for SPDT
The SJE SignalMaster® control switch is used to accurately monitor high (normally open) or low (normally closed) liquid levels to activate pump control panels and alarms in water and sewage applications.

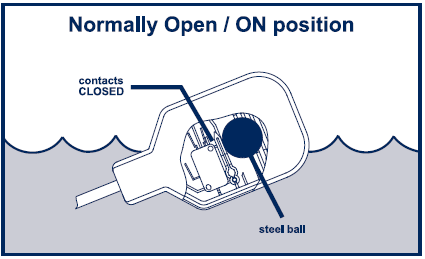

Normally Open Models (high level): The control switch turns on (closes) when the float tips slightly above horizontal signaling a high level and turns off (opens) when the float drops slightly below horizontal. Normally open models have a yellow colored cap for easy identification.

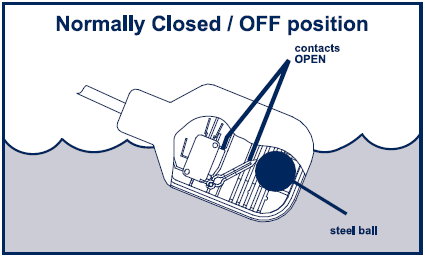

Normally Closed Models (low level): The control switch turns on (closes) when the float tips slightly below horizontal signaling a low level and turns off (opens) when the float tips slightly above horizontal. Normally closed models have a white colored cap for easy identification.
This switch is not sensitive to rotation.
UL、CSA
CABLE:
• SJOW, water-resistant (CPE)
FLOAT:
• 2.74 inches diameter x 4.83 inches long (7.0 x 12.3 cm) high impact, corrosion resistance, polypropylene housing for use in sewage and water up to 140°F (60°C)
CONTROL ACCURACY:
• Control differential of 1.5 inches (4 cm) above or below horizontal
MAXIMUM WATER DEPTH:
• 30 feet (9 meters), 13 PSI (90 kPa)
ELECTRICAL:
• 5 amps, 125/250 VAC, 50/60 Hz
CERTIFICATE:
• UL Recognized, CSA Certified
OPTIONS
• For NC (low level), NO (high level), or SPDT (high or low level)
• With adjustable mounting clamp for applications where the float can be attached to a discharge pipe or similar mounting device, or cable weight for applications where the float can be suspended from above
• In standard cable lengths of 3, 5 and 10 meters, customize length available
NOTE: This switch is not recommended for controlling electrical loads less than 100 milliamps, 12 VAC and non-arcing electrical loads.
