CABLE:

• SJOW, water-resistant (CPE)

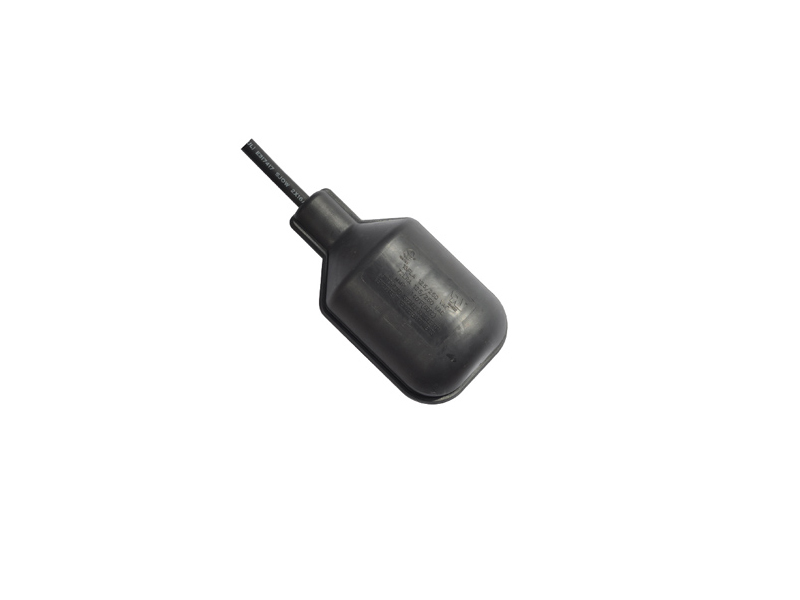

FLOAT:

• 2.74 inches diameter x 4.83 inches long (7.0 cm x 12.3 cm) high impact, corrosion resistance, polypropylene housing for use in water up to 140℉ (60℃)

MAXIMUM WATER DEPTH:

• 33 feet (10 meters) or 13 PSI (90 kPa)

PUMPING RANGE:

• 9 - 36 inches (23 - 91 cm)

ELECTRICAL:

• 12 VDC:

o Maximum Pump Running Current: 10 amps

o Maximum Pump Starting Current: 100 amps

• 125 VAC 50/60 Hz Single Phase:

o Maximum Pump Running Current: 10 amps

o Maximum Pump Starting Current: 60 amps

• 250 VAC 50/60 Hz Single Phase:

o Maximum Pump Running Current: 8 amps

o Maximum Pump Starting Current: 60 amps

CERTIFICATE:

• UL Recognized, CSA Certified

OPTIONS

• For NC (pump up), NO (pump down), or SPDT (pump up or down) applications

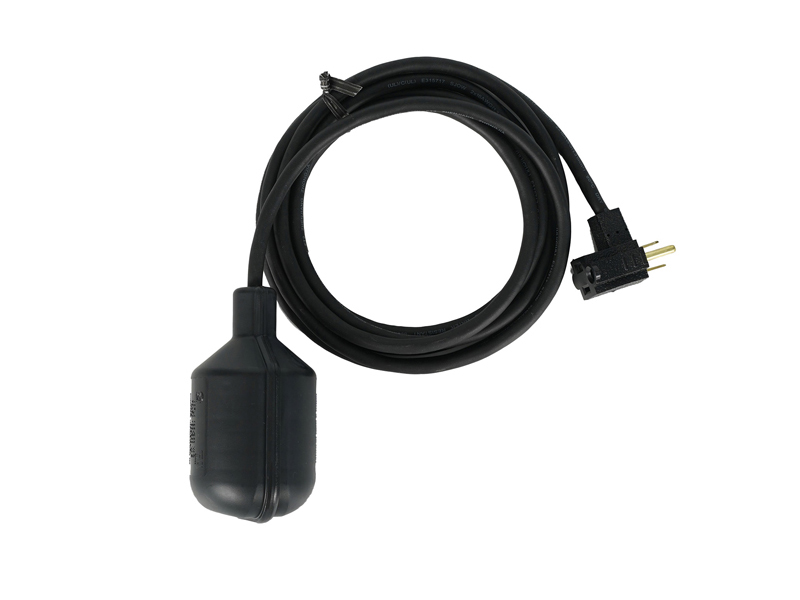

• With a 120 VAC or 230 VAC piggy-back plug

• Without a plug for direct wiring in 120 VAC or 230 VAC applications

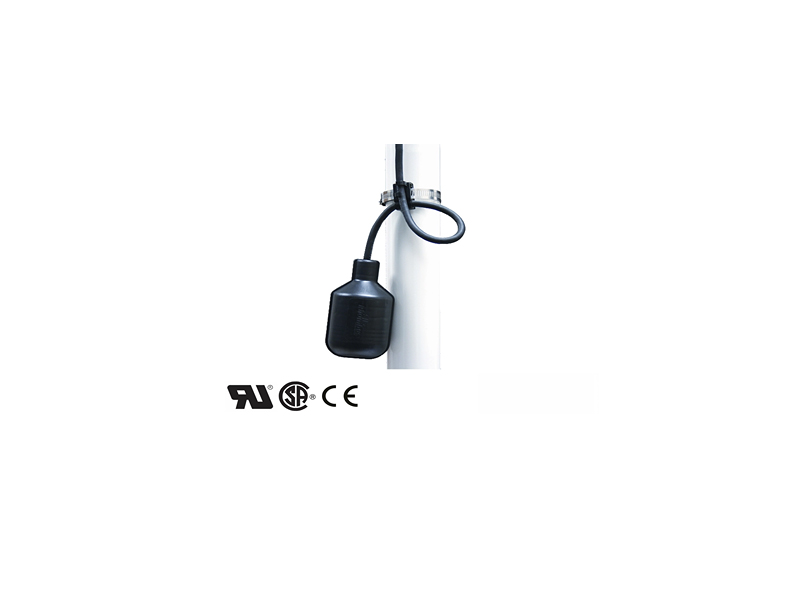

• With adjustable mounting clamp for applications where the float can be attached to a discharge pipe or similar mounting device, or cable weight for applications where the float can be suspended from above

• In standard cable lengths of 3, 5 and 10 meters, customize length available

NOTE: This switch is not recommended for controlling electrical loads less than 100 milliamps, 12 VAC or non-arcing electrical loads. This switch must be used with pumps that provide integral thermal overload protection.

A Pump Switch is designed for Horsepower (HP) rated loads and is not suitable for control (pilot duty) applications. It will fail prematurely when switching loads less than 1 Amp at 120 VAC. Select a float switch from our Control Switch offering for control applications.
