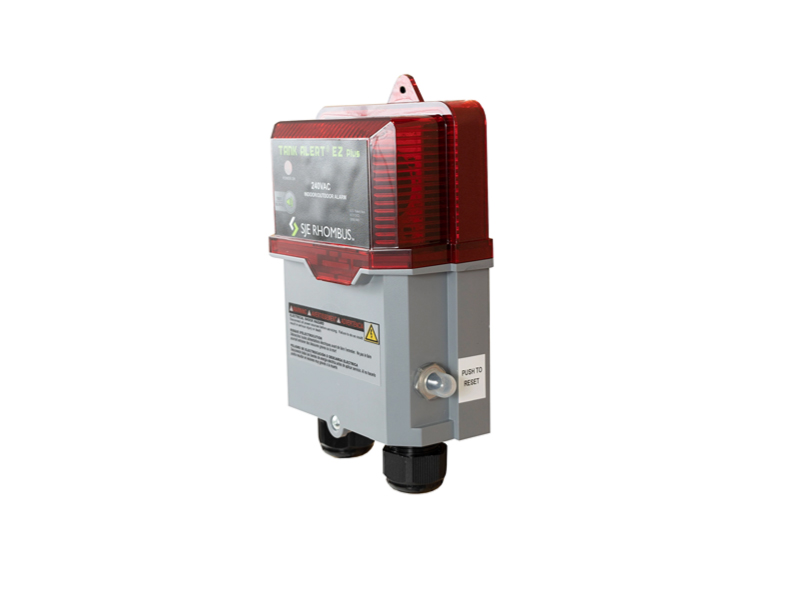

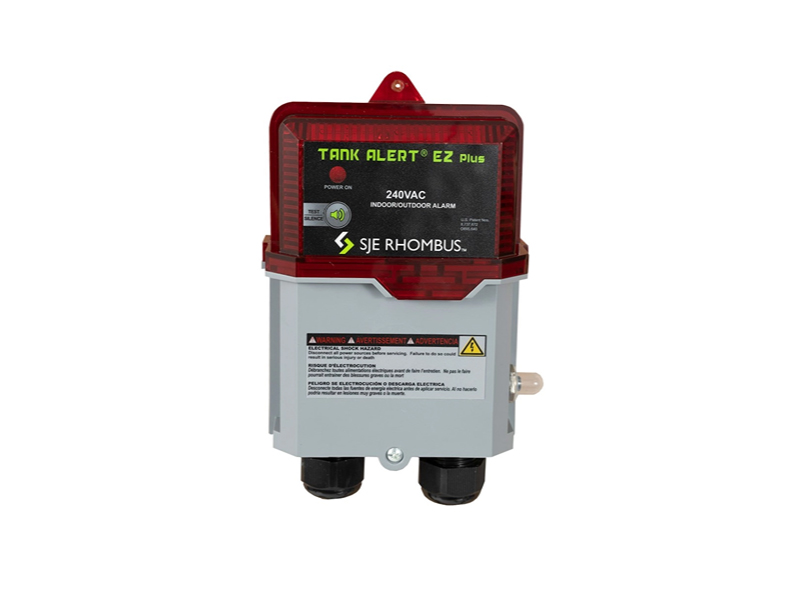

Tank Alert ® EZ Plus is a innovative pump controller designed for a 240VAC single phase pump (up to 12A). Indoor and
outdoor use.
The controller control pump with signals from a pump switch and an alarm switch. If an alarm condition occurs, the alarm switch activates the audio/visual alarm system.
With manual pump start switch, pump overload protection, weekly test run function, Tank Alert ® EZ Plus becomes an excellent control solution for pump lifting system

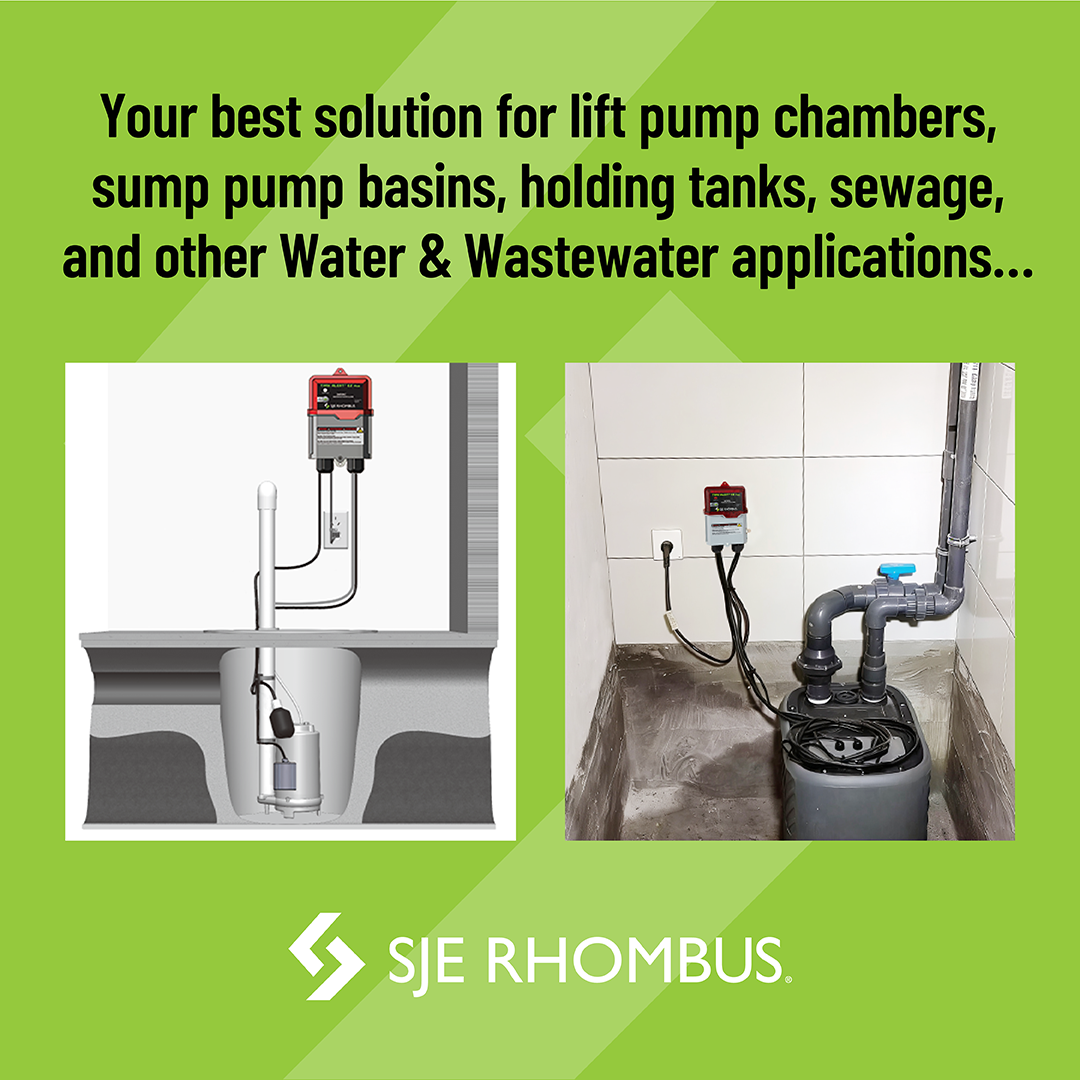

Lift pump chambers, sump pump basins, holding tanks, sewage and other water applications.
CE、UKCA
• 2-color molded enclosure offers a distinct look; upper translucent half illuminates in alarm condition
• Removable lower cover provides greater access for easier field wiring while the internal circuitry remains protected
• Interlocking enclosure features unique sound chamber to amplify the horn, while helping prevent moisture from entering
• IP45 Protection grade
• UL 5VA fire rating enclosure, prevent the fire risk
• Two float switch control ( pump switch, alarm switch)
• Green power on LED indictor
• Automatic alarm reset, horn silence switch, and alarm test switch, Alarm horn 82 dB at 3 m
• Alarm system operates even if pump or pump switch fail
• High level alarm and pump automatically start
• Manual pump start switch
• Weekly pump test run
• Manual reset circuit breaker for pump overload protection
• CE Certified
• 2-Years Limited Warranty
TECHNICAL SPECIFICATIONS:
• Rated voltage: 220~240VAC, 50Hz
• Rated current: 1~12A
• Enclosure: PC, IP45 (Type 3R) for indoor and outdoor use
• 200mm(H)×130mm (L) ×60mm (D)
• Application temperature: -5ºC ~ 40º
