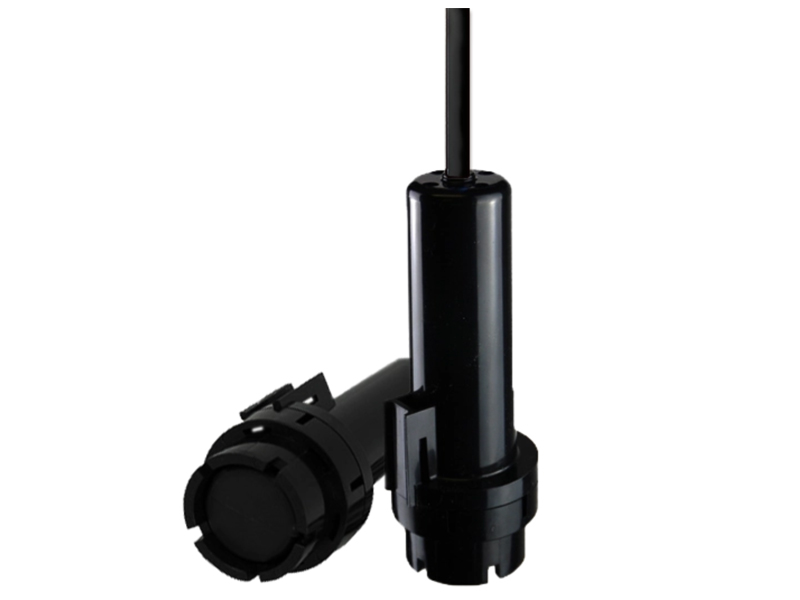

The innovative SL-10F sensor provides continuous level monitoring in tank applications.
The simple and accurate SL-10F sensor converts the water pressure in a tank into a low voltage electrical signal that is read by a variety of level monitoring products manufactured exclusively by SJE Rhombus. This innovative technology provides for continuous level monitoring for wastewater tank applications, confined space applications and systems with a high grease content.
CE、UKCA
ELECTRICAL:
• Input Power: 12 VDC 100 mA max.
• Output: Variable Frequency Signal
MEDIUM:
• Water and wastewater
MEASURING RANGE:
• 0 – 1 meter
REPEATABILITY:
• +/- 1.5% full scale
MAX. IMMERSION DEPTH:
• 3 meters in water
PROTECTION GRADE:
• IP 68
OPERATING TEMPERATURE:
• 0 – 60°C
SENSOR HOURSING MATERIAL:
• PVC, black
DIAPHRAGM:
• VITON®
CABLE:

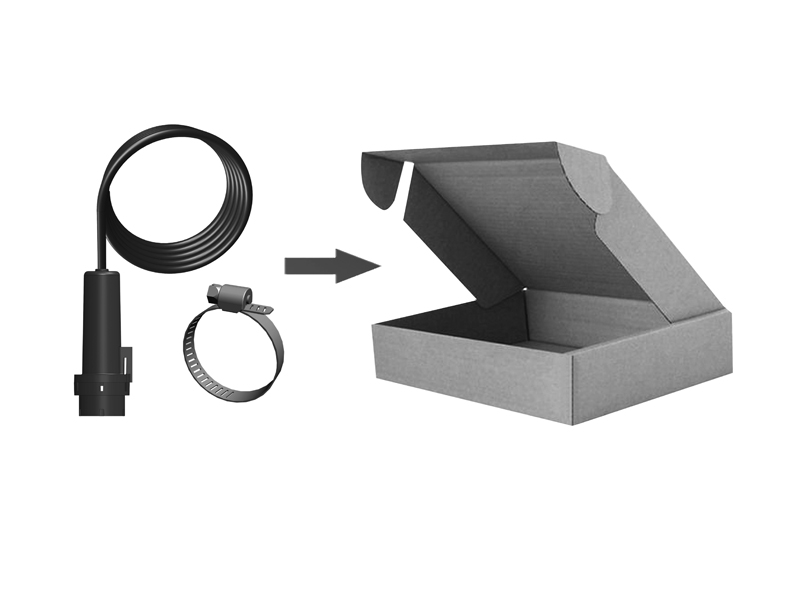

• Polyurethane, with vent tube, standard cable lengths of 4 meters
PHYSICAL:
• Sensor Length: 136 mm
• Sensor Diameter: 51 mm

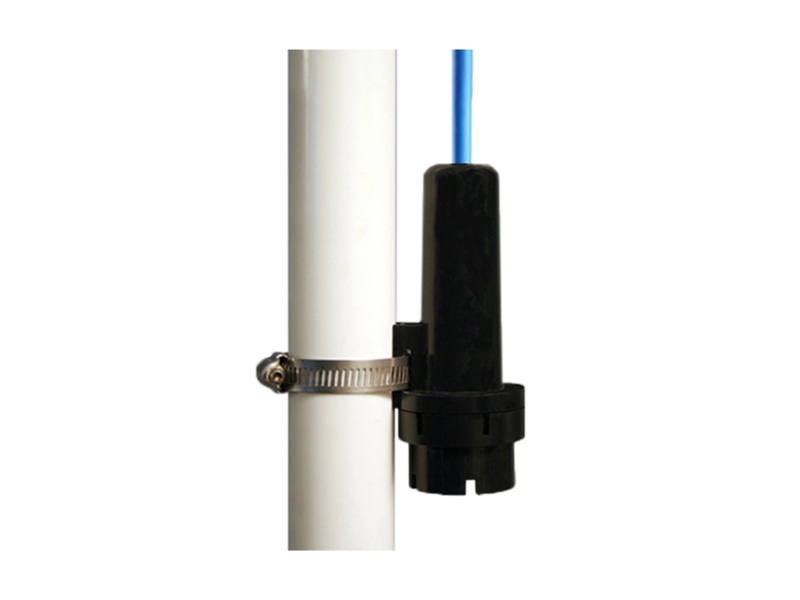

• Mounting: Stainless steel cable clamp on sensor housing
